SSYJ03-1800
uPVC Window and Door Glazing Bead Saw |
 |

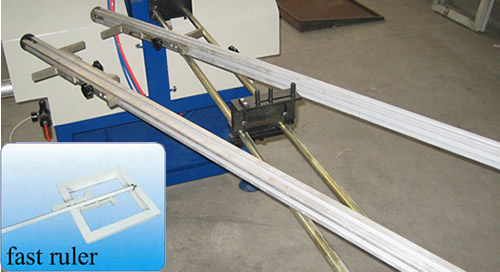

| This
fast ruler is for choice |
 |
|
| Technical Parameter: |
| Working air pressure |
0.4¡«0.6MPa |
| Air consumption |
80L/min |
| Voltage/ frequency |
380V/50 Hz |
| Input Power |
2.2(1.1¡Á2)KW |
Motor rotative velocity
|
2800r/min |
| Processing range(length) |
320¡«1800mm |
| Dimension |
2560mm¡Á1260mm¡Á1350mm |
| Net weight |
200KG |
|
|
| Technical
Analysis |
| This
machine can complete processing procedure of cutting and grooving
glazing bead at the same time. With twin working position-locating
rulers, which guarantee the precision as cutting and avoid the
error, it can measure the window inner frame's size. According
to the needed size, you can process glazing bead. But as you
measure the size directly, you should remove the two rulers
from the machine; or you can measure the inner frame's sizes
at first, and then cut the profile according to the twin working
position-locating rulers. Furthermore, there is a tiny adjusting
device, with which you can adjust the tightness degree as needed
at will. |
|
|
