SSJ02-3500
Double Miter Saw for Aluminum and uPVC Profile

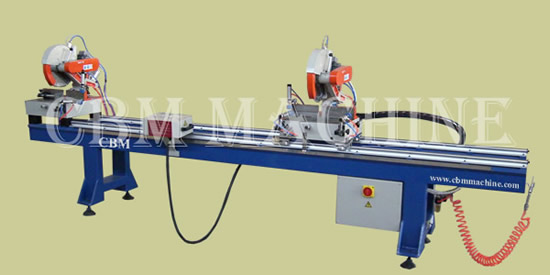

normal type

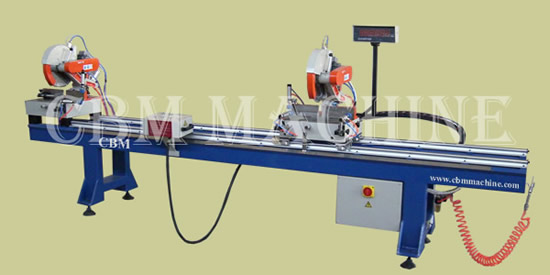

digital display type
Technical Parameter:
Working air pressure 0.5-0.8MPa
Air consumption 100L/min
Voltage/ frequency 380V/50 Hz
Input Power 3.0kW
Saw blade diameter 350mm
Saw blade rotative velocity
3136 r/min
Max cutting section size 90 angle: 200mm*100mm
45 angle: 120mm*100mm
Double saw head cutting length 450-3500mm
Dimension 4000mm*1120mm*1500mm
Net weight 650KG
Remark£ºMax cutting height and max cutting width can't be realized at the same time.
Structure Feature Function Explanation
The machine is made up of saw heads,working table,good circle guideway,machine frame, etc.Air pressure drives feeding and pressing, and the speed can be adjusted. It features swinging feeding and high cutting precision. There are movable shields on the saw heads. Adopt good circle guideway,the working table moves agility, and can be locked in the location what do you need. The machine is used for 45¡ã,90¡ãcutting processing of aluminum and PVC profile with single or double saw heads. It features high efficiency and flexible operation and is the necessary equipment for window and door processing.
