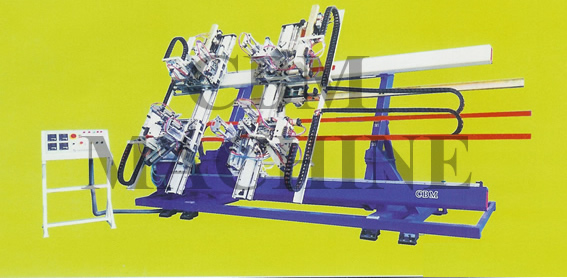

SSHLP4-180*2000*3000
Vertical uPVC Window and Door 4-Corner Welding
Machine |
 |
| Technical Parameter: |
| Working
air pressure |
0.5¡«0.8MPa |
| Air consumption |
200 L/min |
| Input
Voltage |
380V/ 50 Hz |
| Input Power |
7.0 KW |
Welding
profile height
|
20¡«180 mm |
| Welding profile width |
max 120mm |
| Welding
range(length¡Áwidth) |
400¡Á400¡«3000¡Á2100
mm |
| Dimension |
5000mm¡Á1728mm¡Á2870mm |
| Weight |
3000 KG |
|
|
| Structure Feature |
| This machine is made up of four heads,fixed
pole,active pole,machine frame,electricity control box,etc.The
machine head is made up of orientation heating mechanism,horizontal
feeding pressing mechanism and vertical feeding pressing mechanism,etc.The
left up and down heads can be opened and closed along the fixed
pole.The right up and down heads can be opened and closed along
the movable pole.The orientation heating mechanism can realize
orientation and heating.The up and down clamp can realize the
pressing. |
| Function
Explanation |
| The machine is used for PVC door and window
welding processing.The four heads can work at the same time.And
it enables a one-step welding for rectangle window frame and
windowpane.It adopt PLC.It features high reliability and wide
processing range.It is easy to operate.It is efficient and suitable
for batch production. |
| Special
Hint |
| The operation is very easy.The rectangle
window frame can be welded at one step.It is very efficient. |
|
|
