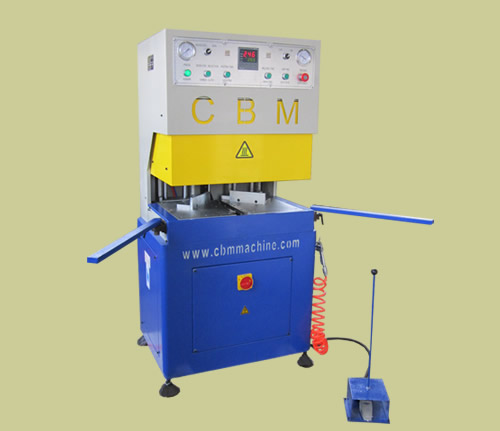

SSHD02-150
Single Head Seamless Variable Angle Welding Machine

Technical Parameter:
Working air pressure 0.6กซ0.8MPa
Air consumption 80 L/min
Input Voltage/frequency 220V/ 50 Hz
Input Power 1.2 KW
Welding height
10กซ150 mm
Max Welding width 160mm
Dimension 860mm*620mm*1800mm
Weight 360KG
Structure Feature
    This machine is made up of machine head,machine frame,electric controlling box and supporting shelf ect.There are orientating mechanism,pressing mechanism and heating mechanism etc.
Function Explanation

1.The machine is used for PVC door and window welding processing with variable angle ranging from 30°- 180°.It features PC control,pneumatic driving,reliable function,simple operation and convenient maintenance.

2.Seamess welding function: welding and surface cleaning at one time.

3.Selection between Seamless function and non-seamless function: if you would not use surface knife when welding, you can stop this function. this technology can prolonog the knife using life.
