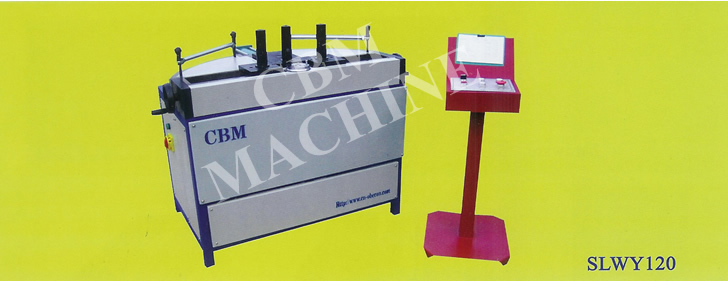

SLWY-120
Auto Aluminum Bending Machine

Technical Parameter:
Input Voltage/frequency 380V/ 50Hz or others
Input Power 2.95 KW
Roller rotation speed 35r/min
Processing profile range 120mm*120mm
Max.bending diameter no limit
Mini.bending diameter 260mm
Dimension 1300mm*900mm*1100mm
Weight 380kg
Technical analysis

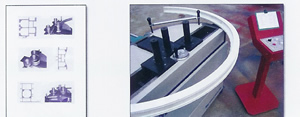

The machine is mainly used for bending aluminum window & door profile and other metal profile(tube,pipe,etc.). Also with the different suitable mould,the machine can process different shape profile.

This machine adopt our newest technology,the bending action is automatic.

This machine use hydramatic system to drive feed roller, very strong and stable.
