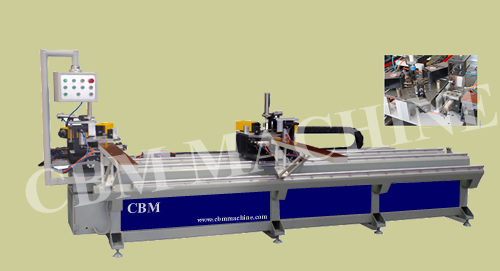

SLM2-100*3000
Two Head Corner Combining Machine

Technical Parameter:
Working air pressure

0.5กซ0.8 MPa

Rated oil pressure 4MPa
Air consumption 1L/min
Input Voltage/frequency 380V/ 50 Hz
Input Power 7.5 KW
Max processing length 3000mm
Min processing frame size 500mm*500mmm
Max alu profile width 100mm
Technical analysis
This machine is used for corner crimping and riveting of aluminum window and door. Two corners connecting at one time is available.

Clamping device can automatically move forward & backward, operation is convenient. The dimension is automatically adjusted.

The hydraulic pressure system is stable and reliable.

The high accuracy linear movement part ensures precision of the corner crimping.

Adjustable locating device and the corner-crimping part are suitable for various section and size processing.
