SLJZ2K-450*3700

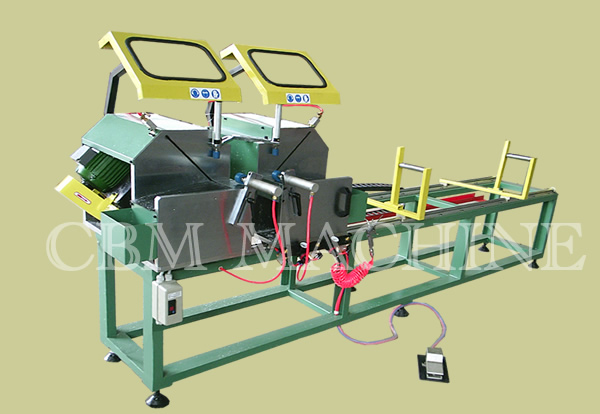

45 Angle Double Miter Saw for Aluminum and uPVC Profile
Technical Parameter:
Working air pressure 0.5¡«0.8MPa
Air consumption 200L/min
Voltage/ frequency 380V/50 Hz
Input Power 3kW
Saw blade diameter 450mm
Saw blade rotative velocity
3087 r/min
Max cutting section 120mm*140mm
Double cutting length 580¡«3700mm
Dimension 4500mm¡Á1100mm¡Á1400mm
Net weight 950KG
Structure Feature Function Explanation
     This machine features pneumatic drive, linear and steady feeding.The cutter is alloy saw plate with high precision and long service life.It also features hard structure and stable capability.      This machine is used for aluminum and PVC profile cutting 45 degree angle.It features wide cutting range,high productivity and is suit for batch production,continuous and multi-various production.
