| SJL01

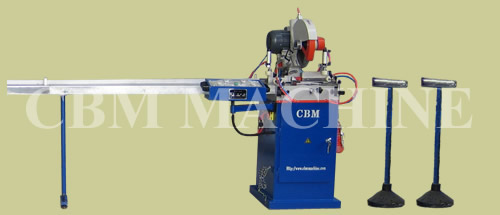

Single head cutting Saw for Alu & PVC Profile |
 |
| Technical Parameter: |
| Working air pressure |
0.5กซ0.8MPa |
| Input Power |
1.5kW |
| Voltage/ frequency |
380V/50 Hz |
| Saw blade diameter |
350mm |
Saw blade rotative velocity
|
3200 r/min |
| Max cutting section size |
90°: 200mm*100mm |
| 45°: 120mm*100mm |
| Dimension |
590mm*1120mm*1400mm |
| Weight |
220KG |
|
| Technical
Analysis |
| This
saw is used for aluminum & PVC profile cutting. It can cut
45,90 and other angle. Installed with material holding rack
and gauge device,the machine features high location precision,automatic
clamping,automatic feeding,pneumatic drive,stepless timing regulation,2-button
security design,interlock control feeding,high security,advanced
function and reliable quality. |
|
|
