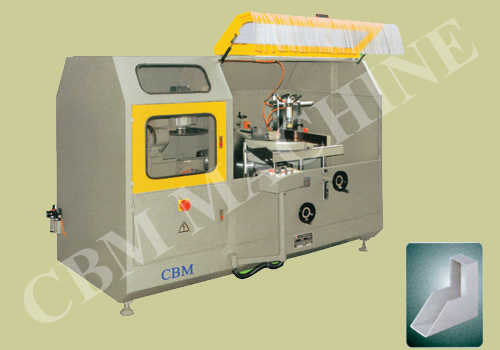

| SJKJ-500
Aluminium Connecting End Cutting Saw for curtain wall
|
 |
| Technical Parameter: |
| Working air pressure |
0.5กซ0.8MPa |
| Input Power |
2*2.2 KW |
| Voltage/ frequency |
380V/50 Hz |
| Saw blade diameter |
500mm |
Saw blade rotative velocity
|
2800 r/min |
| Saw blade swing range |
+/- 45° |
| Max cutting depth |
150mm |
| Cutter feed speed |
0-3m/min stepless |
| Dimension |
3140mm*1380mm*1800mm |
| Weight |
1500KG |
|
| Function Explanation |
| This machine is used in aluminium curtain-wall
and lighting skylight processing industry. It has the Features
of easy operation, reliable performance, advanced technique
and convenient maintenance etc. The carbide saw blade ensured
high processing accuracy and efficiency. The two saw heads can
work simultaneously to achieve the processing of a special angle
at the profile end surface. The two saw blades can swing freely
from +45 degree to -45 degree. It has digital display structure. |
|
