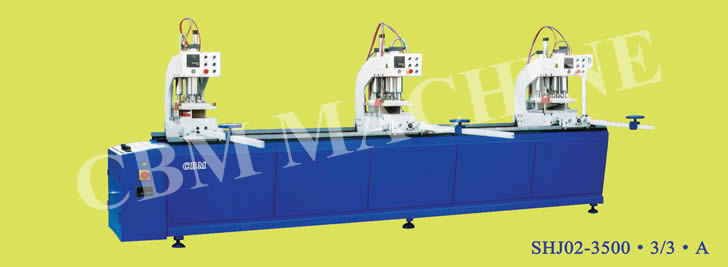

SHJ02-3500.3/3.A
uPVC Window and Door 3-head Welding Machine |
 |
|
| Technical Parameter: |
| Working
air pressure |
0.5¡«0.8MPa |
| Air consumption |
150 L/min |
| Input
Voltage/frequency |
380V/ 50 Hz |
| Input Power |
3.5 KW |
Welding
height
|
20¡«90 mm |
| Max Welding width |
max 120mm |
| Welding
size |
400¡«3500 mm |
| Dimension |
4500mm¡Á1000mm¡Á1700mm |
| Weight |
1200 KG |
|
| Structure Feature |
| This machine is made up of three
heads, frame, electric controller box, profile-holding frame,
etc. The left head can move 20mm by following the track. Every
head has their separate location structure, pressing structure,
heating structure and head box. |
| Function
Explanation |
| This machine is one of the necessary
equipment for processing PVC Window and Door. It can complete
the whole welding alone. It features advanced technique, pneumatic
drive, PC control, stable capability and simple operation. The
CM non-oil lubricating bearing and liner moving bearing make
high precision and convenient maintaining. The machine has one
head that can weld various angles. The three heads can work
individually and jointly. It enables welding for such shapes
as ©» ©Ç ©× ©³©· ©×©× ©×©×©ï ©ï©ï etc. |
| Special
Hint |
| The three heads can be combined at
will. |
|
|
