SSSJ06-3700

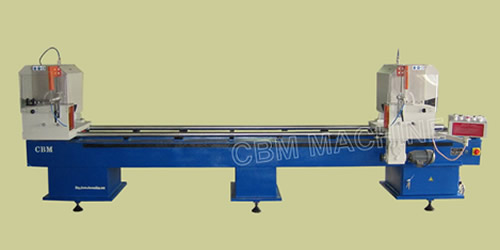

Economic Double Miter Saw for Aluminum and uPVC Profile
Technical Parameter:
Working air pressure 0.5¡«0.8MPa
Air consumption 200L/min
Voltage/ frequency 380V/50 Hz
Input Power 3.55kW
Saw blade diameter 450mm
Saw blade rotative velocity
3087 r/min
Max cutting section 120¡Á200mm
Double cutting length 580¡«3700mm
Dimension 4500mm¡Á1100mm¡Á1400mm
Net weight 1000KG
Structure Feature Function Explanation
     This machine features pneumatic drive, linear and steady feeding.The movable saw head is dragged by the motor with easy operation. The cutter is alloy saw plate with high precision and long service life.It also features hard structure and stable capability.      This machine is used for aluminum and PVC profile cutting processing adjusting to 45¡ã¡«90¡ãand cutting the mid-frame.It features wide cutting range,high productivity and is suit for batch production,continuous and multi-various production.
