EHJ02-2500¡¤2/2¡¤A

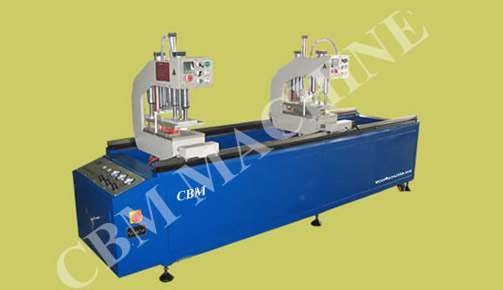

Eeonomic Two Head Welding Machine for PVC
Win-door |
 |
|
| Technical Parameter: |
| Working
air pressure |
0.5¡«0.8MPa |
| Air consumption |
100 L/min |
| Input
Voltage/frequency |
220V/ 50 Hz |
| Input Power |
2.5 KW |
Welding
height
|
20¡«100 mm |
| Max Welding width |
max 120mm |
| Welding
size |
400¡«2500 mm |
| Dimension |
3000mm¡Á1000mm¡Á1700mm |
| Net
Weight |
670 KG |
|
| Structure Feature |
| This machine is made up of two heads,
frame, electric controller box, profile-holding frame, etc.
The left head can move 20mm by following the track. Every head
has their separate location structure, pressing structure, heating
structure and head box. |
| Function
Explanation |
| This machine is one of the necessary
equipment for processing PVC Window and Door. It can complete
the whole welding alone. It features advanced technique, pneumatic
drive, PC control, stable capability and simple operation. The
CM non-oil lubricating bearing and liner moving bearing make
high precision and convenient maintaining. The machine has one
head that can weld various angles. The two heads can work individually
and jointly. It enables welding for such shapes as ©» ©Ç ©× ©³©·
©×©ï ©ï etc. |
|
|
