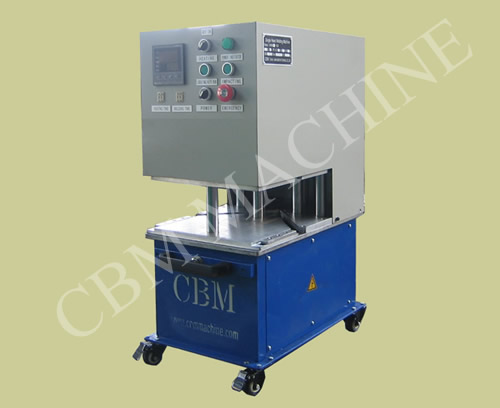

EAWM01-120
uPVC Window and Door Easy Moveable Single
Head Welding Machine |
 |
| Technical Parameter: |
| Working
air pressure |
0.5กซ0.8MPa |
| Air consumption |
50 L/min |
| Input
Voltage/frequency |
220V/
50 Hz |
| Input Power |
1.2 KW |
Welding
height
|
10-120
mm |
| Max Welding width |
max 120mm |
| Dimension |
700mm*500mm*1000mm |
| Net
Weight |
70
KG |
|
| Structure Feature |
| This machine is made up of machine
head,machine frame,electric controlling box and supporting shelf
ect.There are orientating mechanism,pressing mechanism and heating
mechanism etc. |
| Function
Explanation |
| The machine is small shape and easy to carry out
for outdoor working. It is used for PVC door and window welding
processing. It features PC control, pneumatic driving, reliable
function, simple operation and convenient maintenance. |
|
|
