AWM05-120
uPVC Window and Door Single Head Cross Welding Machine
Technical Parameter:
Working air pressure 0.5¡«0.8MPa
Air consumption 50 L/min
Input Voltage/frequency 220V,1-phase,50 Hz
Input Power 2.5 KW
Welding height
45¡«135 mm
Max Welding width max 140mm
Dimension 1000mm¡Á1000mm¡Á1850mm
Net Weight 350 KG
Function Explanation

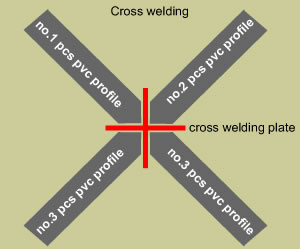

* This machine is specially used to weld "+" cross shape.

* Welding 4 pcs pvc profiles to be cruciform at one time.

* Clamping profile action by hand, other work are automatic.

* PLC control,pneumatic driving,reliable function,simple operation and convenient maintenance.
