AWM03-120
Single Head Seamless Welding Machine

(top and bottom surface cleaning)
Technical Parameter:
Working air pressure 0.5¡«0.8MPa
Air consumption 50 L/min
Input Voltage/frequency 220V/ 50 Hz
Input Power 1.2 KW
Welding height
20¡«90 mm
Max Welding width max 120mm
Dimension 700mm¡Á900mm¡Á1700mm
Net Weight 280 KG
Structure Feature
    This machine is made up of machine head,machine frame,electric controlling box and supporting shelf ect.There are orientating mechanism,pressing mechanism and heating mechanism etc.
Function Explanation

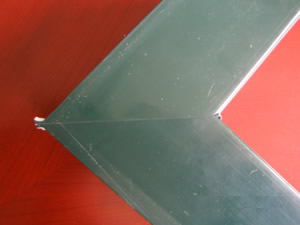

After Welded, the window corner's top and bottom surface can be fully cleaned off,economic and save time.

The machine is used for PVC door and window seamless welding processing.It can weld 90 degree corner,V-notch.It features PC control,pneumatic driving,reliable function,simple operation and convenient maintenance.
